Nord DSP-DAC NCAS500MP Amplifier - Built for Sun Audio
Nord DSP-DAC NCAS500MP Amplifier - Built for Sun Audio
Final price may change based on shipping destination at checkout.
Couldn't load pickup availability
This item is made-to-order
Expect 4 to 8 weeks lead time
Share
Description
For those who do not want to bother with setting up a DSP crossover we are offering a Plug & Play solution in cooperation with Nord Acoustics. It is a customized version of the Nord DSP-DAC NC252MP Amplifier.
The DSP integrated amplifier will be equiped with the Hypex NCore® NCAS500MP amplifier modules and the DSP profile for your Purified 4 loudspeakers will be pre-installed. Just connect the loudspeakers and enjoy!
Inputs
- Analogue XLR balanced
- Analogue RCA unbalanced
- Digital AES/EBU balanced
- Digital S/PDIF unbalanced
- Optical
- All inputs are selectable without any change in set up
Remote control and a big, clear display makes operation a breeze.

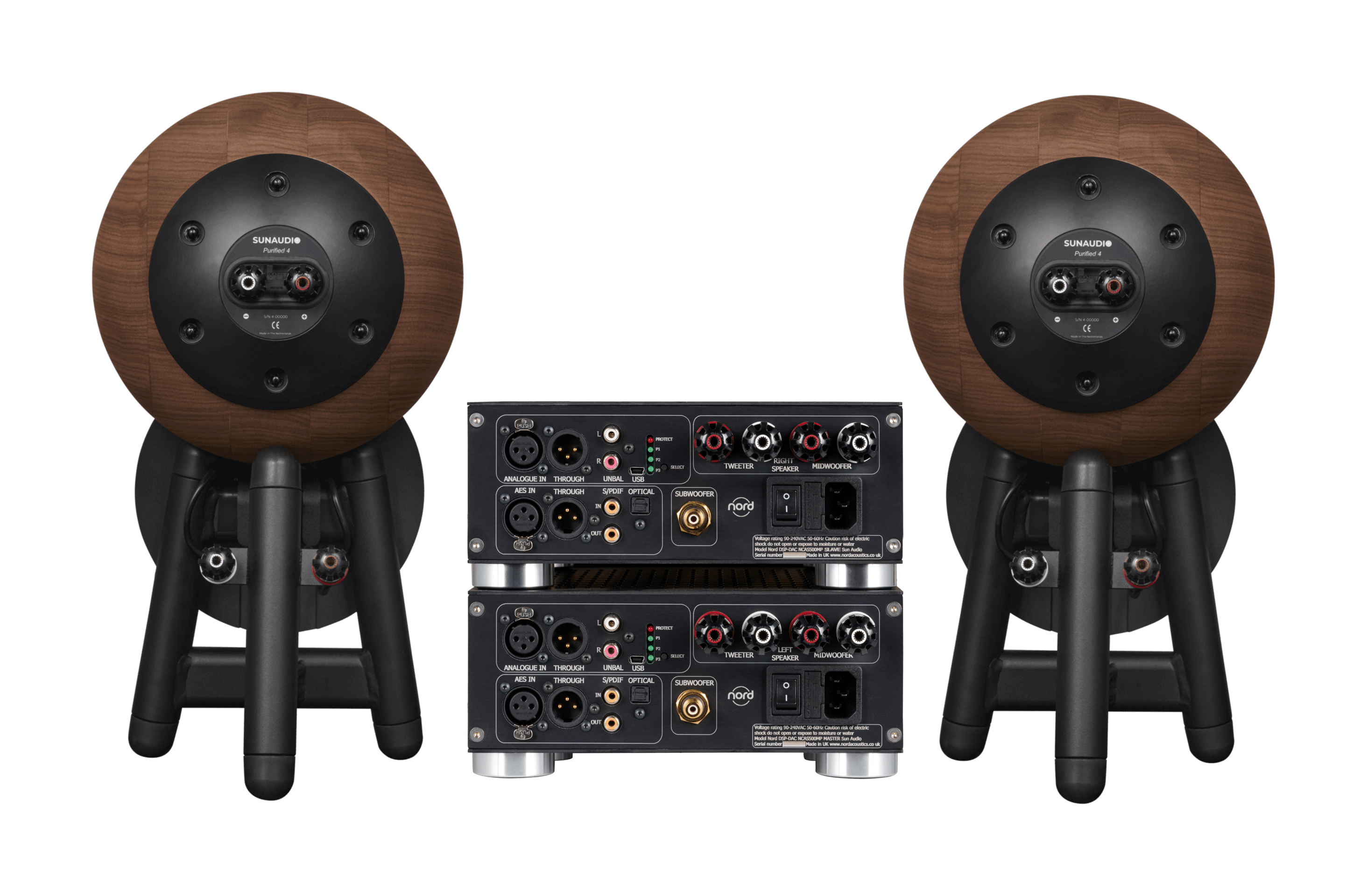

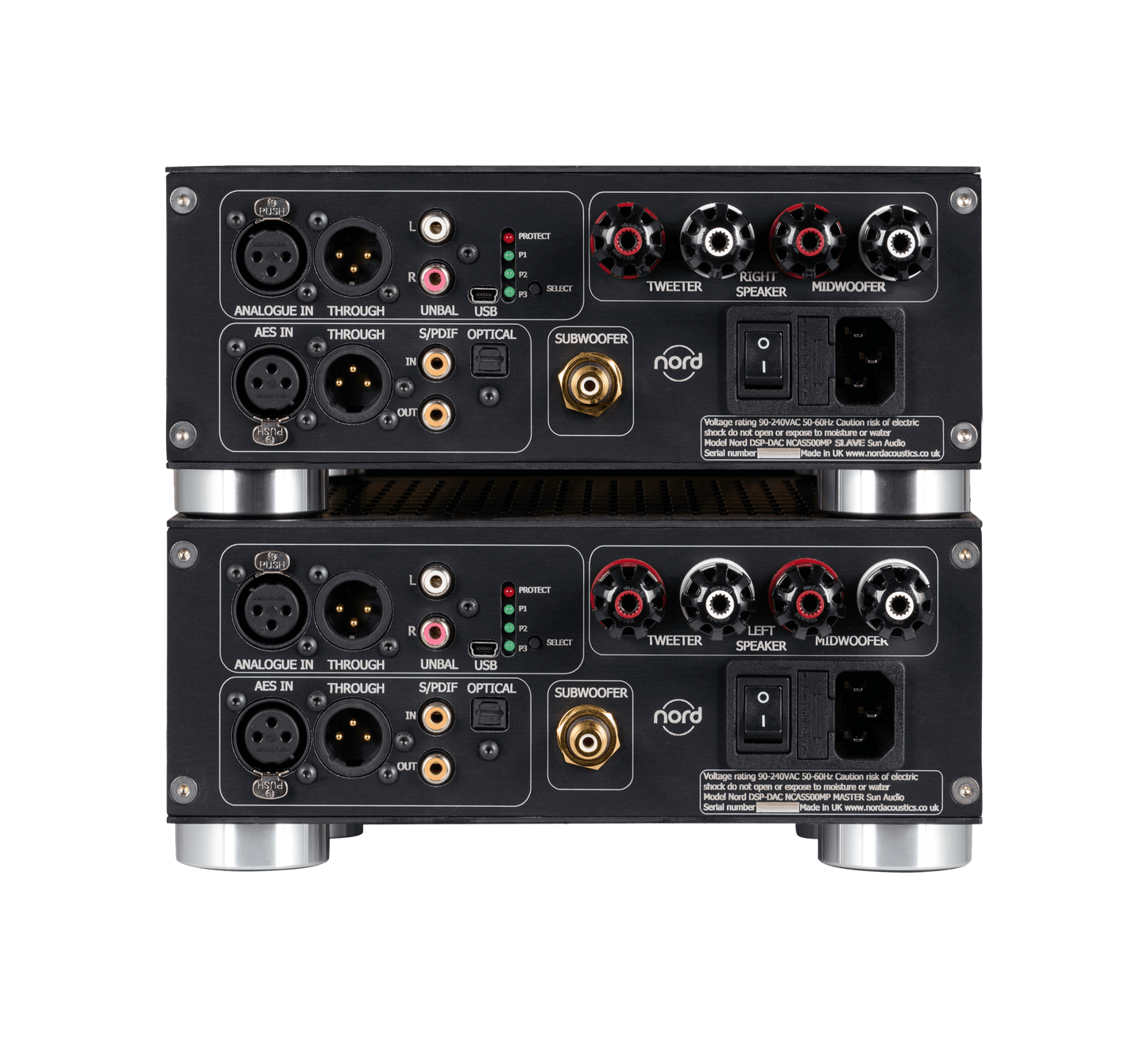

The rear panel will have a different naming for easy Plug & Play connectivity:
Rear panel Master Unit - Left Channel
- CH1 -> Tweeter
- CH2 -> Midwoofer
- Speaker -> Left Speaker
- Line Out -> Subwoofer
Rear panel Slave Unit - Right Channel
- CH1 -> Tweeter
- CH2 -> Midwoofer
- Speaker -> Right Speaker
- Line Out -> Subwoofer
Specifications (per channel)
- Pre-installed DSP profiles (on 3 presets) for your Sun Audio Purified 4 loudspeakers
- Hypex NCore® NCAS500MP two channel Module
- Hypex DSP3-213 DSP engine
- Nord Switchable RCA-XLR input board
- Auto sensing 100-240V mains input operation
- 0.12W standby operation
- 650W Main PSU
- 47K Ohms Input Impedance, low output impedance
- THD 0.007% + 0.005%
- S/N Ratio 119dB + 113dB
- 26dB Voltage Gain Input Sensitivity 2.3Vrms
- Power (2Ω): Not supported
- Power (4Ω): 440W + 120W
- Power (8Ω): 400W + 100W
- Channels: 2
- Technology: NCORE®
- Fully loaded flat frequency response
- Efficiency: 92%
- Binding Posts: WBT-0703 Cu nextgen™
- Dimensions: W 240 D 280 H 102 mm
- Color: Black
- Weight 6Kg
Default preset configuration [besides crossover, PEQ, gain & delay]
- Without HP filter on midwoofer outputs & without LP filter on subwoofer outputs.
- 12dB/oct @ 80Hz HP filter on midwoofer outputs & without LP filter on subwoofer outputs.
- Without HP filter on midwoofer outputs & 12dB/oct @ 80Hz LP filter on subwoofer outputs.
Custom configuration possible on request.
Delivery & Warranty
Your Nord DSP-DAC NCAS500MP Amplifier will be delivered together with your Sun Audio loudspeaker system. We order your unit with Nord Acoustics, billing address will be yours, shipping address ours. Warranty is supplied by Nord Acoustics according to their terms and conditions.
More information can be found on Nord Acoustics website:
https://nordacoustics.co.uk/nord-acoustics-orderinginfo/
